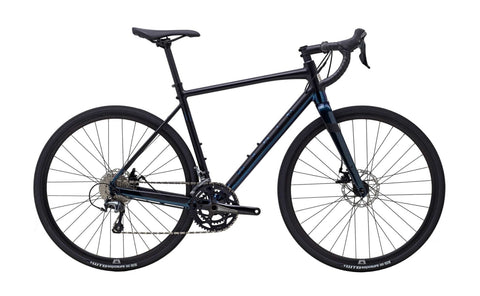

Marin Gestalt 2 Gravel Bike 2023

More Information

ENDURANCE AND ALL-WEATHER PAVEMENT

The Gestalt is for the drop bar rider that doesn’t want to stick to pavement, and can’t help but get dirty no matter the route. Long distance commuters and all-weather riders will appreciate the fender and rack mounts and the sure stopping disc brakes, and the larger volume tires are right at home on that unexpected detour.

Key upgrades over the Gestalt 1:

• Shimano Tiagra 2x10 drivetrain

SPECIFICATIONS

• FRAME

  Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

• FORK

  Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

• RIMS

  Marin Aluminum Double Wall, 19mm Inner, 24mm Tall, Disc Specific, Tubeless Compatible

• HUB, REAR

  Forged Aluminum Alloy, 32H

• HUB, FRONT

  Forged Aluminum Alloy, 32H

• SPOKE, NIPPLES

  14g Black Stainless Steel

• TIRES

  WTB, Exposure Comp, 700Cx32mm, Wire Bead

• DERAILLEUR, REAR

  Shimano Tiagra 10-Speed

• DERAILLEUR, FRONT

  Shimano Tiagra

• SHIFT LEVER

  Shimano Tiagra 2x10-Speed

• CRANKSET

  FSA Gossamer, MegaExo Spindle, 50/34T

• BOTTOM BRACKET

  FSA MegaExo Threaded

• CHAIN

  KMC X10

• CASSETTE

  Shimano Tiagra HG-500, 11-34T

• BRAKE, FRONT

  Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor

• BRAKE, REAR

  Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor

• BRAKE LEVERS

  Shimano w/ Integrated Shifters

• HANDLEBAR

  Marin Butted Alloy, Compact 12º Flared Drop

• STEM

  Marin 3D Forged Alloy

• GRIPS

  Marin Perforated Tape

• HEADSET

  FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

• SEATPOST

  Marin Alloy, 27.2mm

• SADDLE

  Marin Beyond Road Concept

• PEDALS

  Commute Platform

• EXTRAS

  Bolt-On Thru-Axles F and R
